| C5 Corvette front part numbers (all #s are GM part numbers) | |
| Left Front Z06 Caliper (Red) 88895128 Left Front C5 Caliper (Black) 12530683 | |
| Right Front Z06 Caliper (Red) 88895129 Right Front C5 Caliper (Black) 12530682 | |
| Front Caliper parts | |
| C5 Rotor Left (stock) 10445857 or use C5 Rotor - Left Durastop 88926732 | |
| C5 Rotor Right (stock) 10445856 or use C5 Rotor - Right Durastop 88926731 | |
| Caliper Bracket (2 required) 12455799 | |
| Caliper Guide Pin (4 required) 12530697 | |
| Caliper Guide Pin Seals (4 required) 12530703 | |
| Brake Hose Copper Washer (4 required) 10139097 | |
| C5 Brake Pads (stock) 12530681 or use C5 Ceramic Durastop Pads 88909667 | |

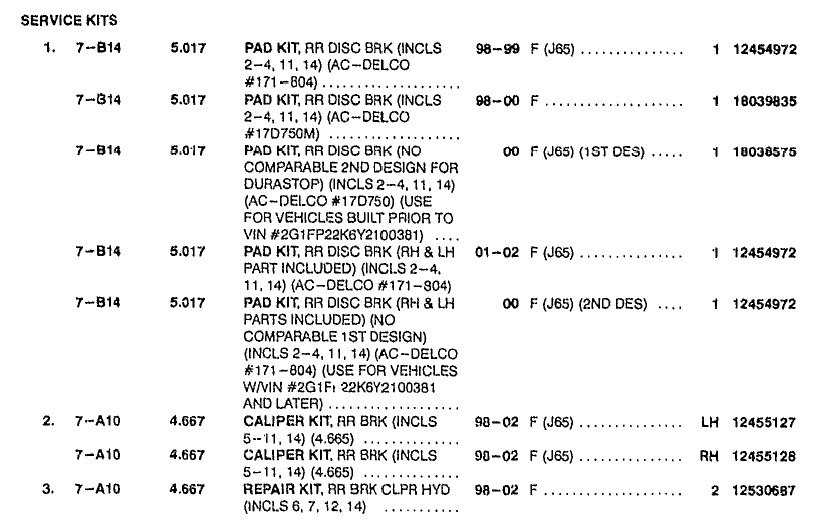

| LS1 Camaro rear part numbers (all #s are GM part numbers) | |
| LS1 Left caliper 12455127 | |
| LS1 Right caliper 12455128 | |
| Left backing plate with drum parking brake shoes 10434796 | |
| Right backing plate with drum parking brake shoes 10434797 | |
| Caliper mounting brackets (2 required) 12456459 | |
| Rear parking brake cables 10424968 | |
| Left parking brake bracket 10289539 | |
| Right parking brake bracket 10289540 | |
| Rear brake hoses (to calipers) w/ banjo bolt (2 required) 22163484 | |
| Caliper guide pins (4 required) 12530697 | |
| Rear rotors with parking brake drum (2 required) 18060239 | |
|
|
|
| My costs for both front and rear | |
| 2003 C5 Z06 setup (ebay) | $335.00 |
| 2001 LS1 brakes (ebay) | $182.50 |
| AutoZone Duralast El Camino rotors Part #5547 | ($39.99ea) $79.98 |
| AutoZone Inner wheel bearing (Timken) Part #SET6 | ($9.49ea) $18.98 |
| AutoZone Outer wheel bearing (Timken) Part #SET34 | ($11.99ea) $23.98 |
| AutoZone Inner Seal (Timken) Part #8871 | ($1.99ea) $3.98 |
| AutoZone Hub dust covers Part # 13977 | ($2.99ea) $5.98 |
| Parts America Spindle nut Part # 304993 | ($3.97ea) $7.94 |
| Bracket to hold Corvette calipers onto G-body spindles | $90.00 |
| Getting the spindles modified | $75.00 |
| Copper gaskets for brake lines (10 - 2 extra just in case) 21012386 | (.71ea) $7.50 |
| Flush mount valve stems Summit Racing SUM-G1958 (set of 2) | ($5.88 set) $11.76 |
| Flush mount valve stems install cost | $64.00 |
| Braided brake lines front/rear | $101.00 |
| Final total for front and rear brakes | $1017.90 |
| Additional parts/work I had done to the brakes | |
| Corvette Durastop front caliper brake pad kit 88909667 | $66.52 |
| Camaro rear caliper brake pad kit 88899570 | $54.63 |
| Corvette front caliper rebuild kit (needed after powder coating) 12530686 | ($12.09 ea) $24.18 |
| Camaro rear caliper rebuild kit (needed after powder coating) 12530687 | ($12.09 ea) $24.18 |
| Solo-Bleed brake bleeders Summit racing EAR-280022ERL | ($9.98ea) $19.76 |
| Powder coating | $150.00 |
|
$339.27 |
|
|
Complete total |
$1371.17 |
